Bogen · Mild Steel

Dali Built-In

A flush, built-in 8kW unit with all the signature Bogen features and 84% efficiency. Designed to disappear into the wall.

HEAT OUTPUT
8kW
ROOM SIZE
100m³
EFFICIENCY
84%
WEIGHT
86kg

READY TO BUY

Request a quote from your nearest Heatwave distributor

The Dali Built-in is tailored for those in search of the ideal combination of flexibility, top-notch craftsmanship, and advanced heating technology. Despite its simple design, this unit encompasses all the signature features of the Bogen range, delivering an impressive heat output of up to 8kW. Elevate your space with the Dali Built-in, where elegance and functionality converge seamlessly.
Two engraved control levers — primary and secondary
Vent-heated secondary air for efficient combustion
Convection airflow circulates warm air from the top
Sealed ashpan keeps glass clear
Compatible with rear outlet installation
84% efficiency rating

Performance

Heat output

8 kW

Room size

100

Efficiency

84 %

Dimensions & Build

Width

540 mm

Height

640 mm

Depth

435 mm

Weight

86 kg

Flue

150 mm

HOW IT WORKS

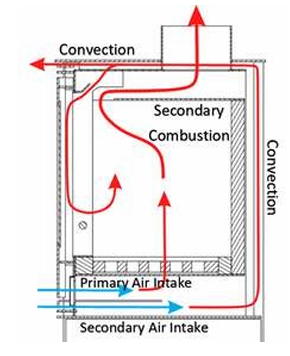

The Dali built-in unit features two separate controllable levers, each providing air to the combustion chamber. Engraved markings on the levers distinguish between primary and secondary airflow. Primary air fuels the fire through the ashpan, while secondary air is heated via a vent passing over the fire. This heated air serves as the unit’s air-wash system, ensuring the glass remains clear. Additionally, the unit facilitates convection airflow, with the chamber between the firebox and exterior panel heating up. This generates a natural draft of warm air, emanating from the top of the unit for enhanced circulation

Request a quote from your nearest distributor

Heatwave fireplaces are sold through our nationwide network of certified distributors. Contact your nearest showroom to get a quote, see the product in person, and arrange professional installation.
